Electric welding smoke benchtop solder fume extractor laser carving
Specifications:
| Model Number: | F6002D |
| Filters Quantity: | pre-filter 5pcs, middle filter 1pc, main filter 1pc |
| Voltage | 110-220V |
| Power | 200W |
| Systemic Flow: | 2 x 150m3/h |
| Air Velocity: | 2 x 11m/s |
| Filtering Efficiency: | 0.3micron 99.97% |
| Length of Duct: | Dia.75mm x 1.4m |
| Noise: | Less than 60db |
| Dimensions(mm) | 420x245x400 |
| Net weight | 13kgs |
| Application | Solder fume removal |
welding fume extractor

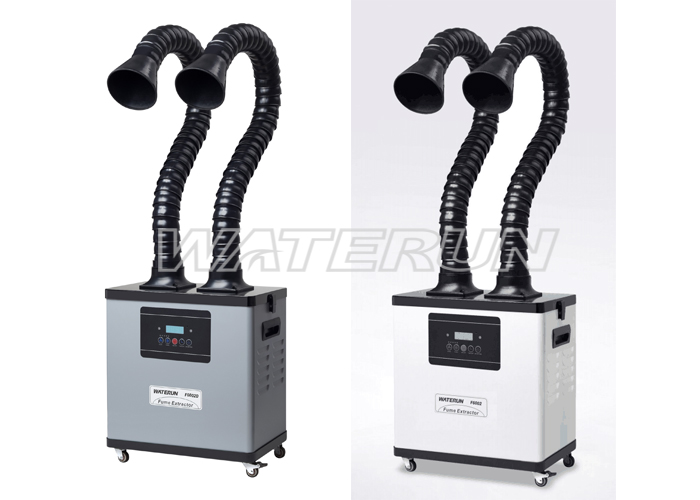

Portable Welding Fume Extractor
1. Compact conformation
Welding Fume Extractor is compact and small size, which is convenient to operate.
2. Variable air volume
Welding Fume Extractor uses the PWM governor system, the airflow is variable. and it is practical
, convenient and energy-saving.
3. High filtering efficiency
Adopting filter cartridge filter, the filter with high efficient PTFE layer has a high level of filtration
efficiency (0.3-0.5micron) dust, and filtration degree above 99.9%.
4. Flexible suction
The suction is flexible and it can rotate in 360.
5. Convenient to clean
Welding Fume Extractor sets the cleaning hole, so it is more convenient to clean the dust and
collection bin. In addition, the product can equip automatic reverse jet device.
Main features of Fume Extractor:
When temperature is above 60-80 degree, the machine will alert automatically or power off.
The filter will alert when the tube of machine block off.
Facility Characteristics
Metal Plate case;
♦ Universal exhaust arm;
♦ Dust hood(with air flow control valve);
♦ Fire barrier;
♦ Flame retardant HEPA cartridge;
♦ Clean room;
♦ Ash drawer;
♦ Glass down;
♦ Castors with brake;
♦ Blower & Electronic Control Panel, etc.
FQAs:
1. What’s the functions for the filters?
Answers. 1) Pre-Filter/F8 pre-filter: the large-size pad filter can filter large particles of dust (according the requirement to select pre-filter or F8)
2) PP Middle Filter/Fiber glass filter: it filters the middle-size, small size particles bigger powders for prolonging the main filter's life. (according the requirement to select PP middle filter or fiber glass filter,can use both, the efficiency better.)
3) Main Filter/Active carbon: it cleans harmful particles and fumes.
4) High efficiency filter(combine middle filter and active carbon filter): it can filter about 0.3micron particles and other harmful fumes.
2. What’s the advantage compare with ducted exhaust fan?
Answer: 1. Many advantages like (1) Clean the air quality (2) energy saving (3) easy installation, flexible remove (4) low cost (5) reduce the incidence of diseases and major diseases, and health is priceless (6) to reduce unpleasant smell (7) to reduce dust and other harmful substances, and so on.
3. What’s the life span of our fume extractor?
Answer: Motor lifetime is (continuous working 24 hours) 20,000 hours, consider environmental factors. Usually it can use 4-5 years without any problems.
4. The ducts for the fume extractor can be shortened or lengthened?
Answer: It can be shortened or lengthened appropriate; but we suggest not more than 1.5meter. For multi-station, the total pipe length should not exceed 10 meters.
5. What’s the best distance between the nozzle and the smokes?
Answer: The distance to be 5-15cm is the best.
6. How long need to to replace the pre-filter, middle filter and the main filter?
Answer: 1. Pre-filter : normally needs to replace by 1 months
2. Middle filter: normally needs to replace by 3 months
3. Main filter: normally needs to replace by 6 months.
7. Bent pipe will affect smoke purify?
Answer: Yes, it affect the suction power, it should reduce the bent rate.
8. Can our fume extractor completely filtered poison gas?
Answer: No, there still no any kind of filter can filter out 100% of poison gas, but you can make a different filter net rate upon request.
